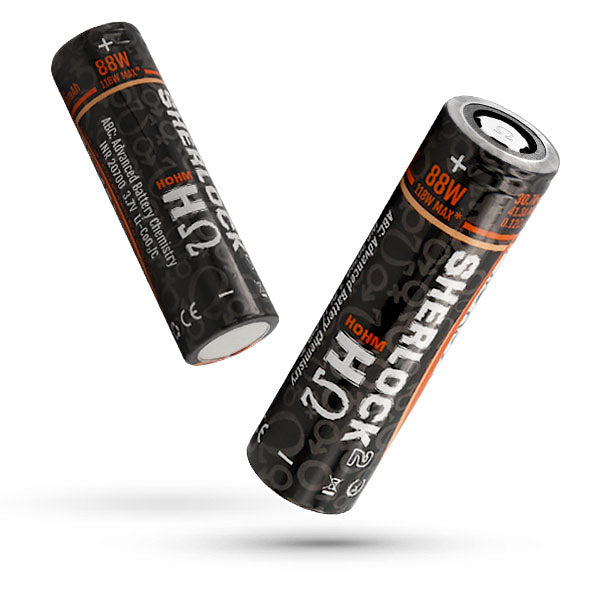

SHERLOCK2 HOHM 20700 BATTERY 3116mAh

SKU: 18582
$18.99
$18.99
Subtotal: $18.99
SHERLOCK2 HOHM 20700 BATTERY 3116mAh

SHERLOCK2 HOHM 20700 BATTERY 3116mAh

$18.99

SHERLOCK2 HOHM 20700 BATTERY 3116mAh

$18.99

Capacity: 3116mAh
Max Charge Rate: 4.67A
Max Charge Voltage: 4.25V
Continuous Discharge Rate: 30.7A
Max 80oC | 3.2V cut-off: 40.6A
Pulse | Peak6: 47.1A
Cycle Life Retention: 500 Cycles (70%), 1000 (60%)
Chemistry Type: Li-CoO2/C
Spec. Sheet in Download Center: Yes
PDF Snapshot: Brochure



Taking an already solid foundation, Hohm Tech Int’l has pushed further making the best of the best even better. Now utilizing proprietary structure, top cap, and chemistry (Li-CoO2/C), we can confidently say Sherlock2 is king of the 20700 game in every way imaginable.



The idea original was to power electric-motor (EVM) applications only but found it too good not to share with the world. To prepare this cell to meet the extreme safety standards we hold ourselves accountable to, it took over a year of R&D on just the Cobalt Oxide ratio and Graphite stripping process.



The Sherlock2 20700 excels as its counterparts do, but with increased tolerance to amp loads, voltage-retention under load, and increased cell life with the inherent cooler operation of new chemistry. For consumers that use devices that require extremely heavy amperage, but need a battery that will support those loads without faulting, we introduce the Sherlock2 20700 cell.



Sherlock2 Hohm can be used in various applications with a Battery Management System. These are rated by Indonesia Chemistry at 3116mAh capacity, with a CDR of 30.7A, an 80°C | 2.8V cut-off of 40.6A, and a pulse/peak rating of 47.1A. All ratings are subject to meet and/or exceed strict limitation policies set forth for DLr1, TID2, PVDL3, CLR4, mΩR5, and Temperature (°C). Sherlock2 is most closely related to the popular Hohm Work2 18650 cell but has chemistry stimulated and melded at different Hz and utilizes different compounds. Results are incredibly high amperage delivery, with an assurance of consistent coalition within the Li-ion family.



Every Hohm Tech cell model has been tested and certified by UN38.3, EN62133, IEC62133 2nd Edition, and UL1642 accredited laboratories and testing facilities assigned by regulatory bodies.  This includes MSDS, CE, ROHS, UN38.3, IEC, Specifications, and Air/Sea Transport certifications.  We do not cut corners. We deliver what we promise… chart-topping performance, capacity, consistency, and safety.



All cells are developed and built specifically for intense & power-hungry devices that require consistent amperage delivery to operate as intended. Not only was power & capacity a priority, but safety measures were at the forefront of it all.



To expound on safety:



‌• modified cathode tag consisting of higher purity aluminum (UHP Al) is utilized to aid in lowering internal resistance
‌• updated poly seal with refined bitumen is installed in every cell to ensure excess pressure is controlled



* NOTICE: Hohm Tech does not manufacture batteries. These are made for and licensed to Hohm Tech Int’l achieving their requirements set forth.

** CAN BE CHARGED AT 4.67A. This is not a misprint. 4.67A as in FOUR POINT SIX SEVEN amp charging is possible, tested, proven, and approved within all strict safety protocols set by Indonesia Chemistry.

*** TESTING BEYOND TEMPERATURE. Hohm Tech cells utilize both static & dynamic testing that includes but not limited to: density loss, thermal distribution, volt drop limiters, cycle life retention, and temperature. These tests are imperative to achieve true cell performance, longevity, and overall quality.



1 Density Loss

2 Thermal Image Distribution

3 No Single Pulse Volt Loss

4 Cycle Life Retention

5 Resistance Retentivity Pre|Post

6 Pulse & Peak is applicable to Dynamic EV Systems ONLY and rated @ ≤5 SEC ON / ≥30 SEC OFF







WARNING:  LI-ION CELLS HAVE INHERENT RISKS IF MISUSED OR MISHANDLED.   CELL CAN EXPLODE CAUSING SEVERE BURN INJURY, FATALITY, AND PROPERTY DAMAGE.  – READ BELOW THOROUGHLY –



READ BROCHURE HERE

CELL = BATTERY



  • KEEP OUT OF REACH of minors (at least 18 years of age) and pets.
  • DO NOT PUT IN FIRE, oven, microwave, or expose to anything over 100oC (212oF)
  • DO NOT  CARRY or store OUTSIDE of its protective packaging or a PROTECTIVE CELL CASE.
  • DO NOT PUT IN POCKET, bag, purse, or on your body (applicable at all times).  Pockets contain KEYS, COINS, OBJECTS, and/or DEBRIS that can short-circuit a cell (battery) causing it to explode.  The cell NEEDS TO BE STORED in its protective packaging or a protective case at all times when not in use.
  • DO NOT PUT A DEVICE WITH CELL(S) INSTALLED IN IT IN YOUR POCKET or ON YOUR BODY.  As unlikely as it may be, a device can malfunction and/or be affected by debris or object(s) in the pocket that can short-circuit cell causing it to explode.
  • DO NOT USE IN A DEVICE THAT CAN EXCEED MAX CELL WATTAGE (W) or AMPERAGE (A) (listed on each cell and retail packaging).  Otherwise, this can overload a cell, causing it to explode.
  • DO NOT USE A LOWER RESISTANCE (Ω) # (listed on each cell and retail packaging).  Otherwise, this can overload cell, causing it to explode.

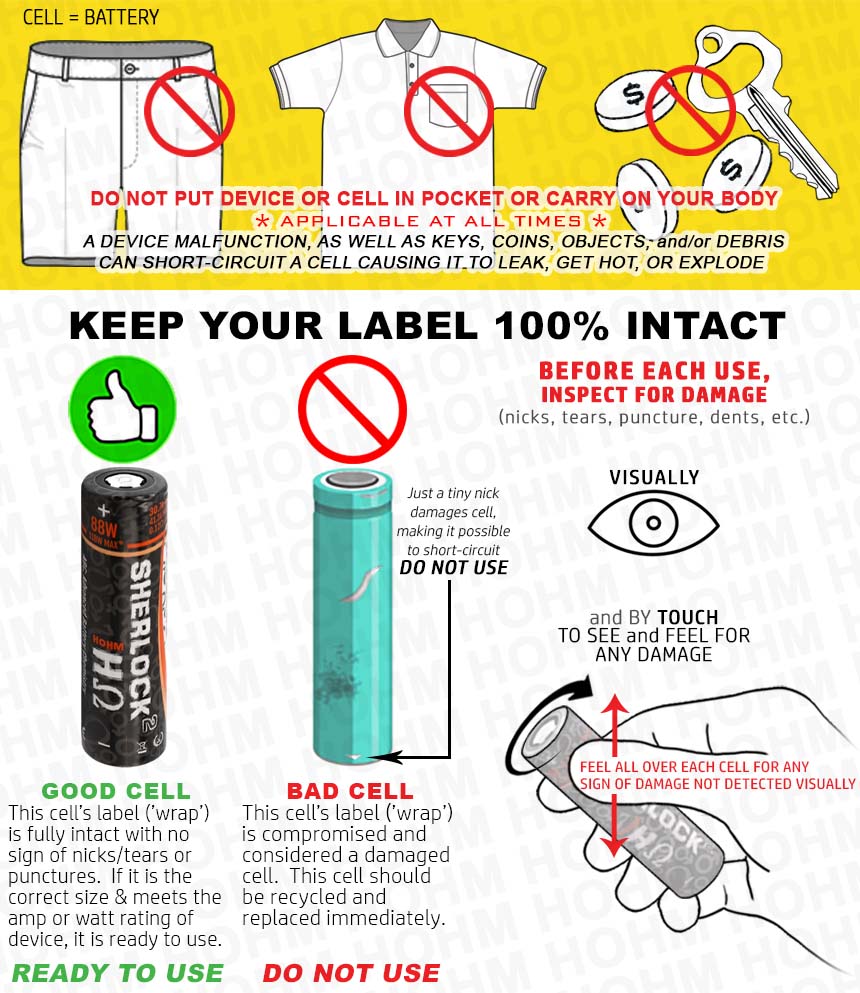

  • DO NOT USE CELL WITH ANY DAMAGE TO ITS STRUCTURE OR OUTER PROTECTIVE LABEL (also called “WRAP”, “sleeve”, “skin”). Damage may include: dent(s), tear(s), nick(s), puncture(s), corrosion, or any other undisclosed abnormalities or damages.  Otherwise, a cell can short-circuit and explode.  ALWAYS INSPECT cell VISUALLY and by TOUCH to SEE/FEEL for damage BEFORE EACH USE.  ** SEE ILLUSTRATION BELOW AS GUIDELINE. **
  • DO NOT LEAVE UNATTENDED WHILE CHARGING, & REMOVE CELL(s) FROM CHARGER ONCE FULLY CHARGED to ensure it is not exposed to any potential charger malfunction such as overcharging which could damage the cell causing it to explode.
  • DO NOT CHARGE HIGHER THAN MAX CHARGE VOLTAGE (V) (typically 4.2Vor DISCHARGE BELOW MAX VOLTAGE CUT-OFF (V) (typically 2.5V).  Overcharging or over-discharging cell(s) can cause irreversible damage and cause it to explode.
  • DO NOT MIX WITH USED or DIFFERENT BATTERY TYPES. Differences in cell capacity can lead to one or more cell(s) being overcharged or over-discharged.
  • IF USING A MULTI-CELL DEVICE, the device MUST HAVE A NON-CONDUCTIVE BARRIER (typically plastic) OR FITMENT that PREVENTS CELL(S) from TOUCHING THE SIDE(S) OF ONE ANOTHER OR ANY ADJACENT METAL except for the very center of top and bottom of the cell. Otherwise, cell(s) could short-circuit and explode.
  • ALWAYS REPLACE CELL when capacity has decreased or within a maximum of 12 months of use (whichever occurs first) when used in a device that allows cell(s) to be changed/removed.  Cell degradation and wear incurred from repeated installation/removal can negatively impact cell integrity and subject it to conditions that can cause it to be short-circuited and explode.
  • ALWAYS charge, connect, and operate cell(s) within their capabilities as listed on each cell, packaging, and product detail pages, while adhering to the device’s user manual.
  • COMPLETELY READ and follow the WARNING section listed on each cell, packaging, and here, in its entirety.
  • SEARCH www.YouTube.com for “18650 EXPLOSIONS to understand the importance of consistently taking safety precautions and using Li-ion cells properly.  Hohm Tech advocates recycling and replacing any damaged Li-ion cell/battery. As a tool to find your LOCAL RECYCLE CENTER.  Or visit Hohm Tech Warranty Center for recycling and replacement.  Your safety is #1.

    Includes 1 Battery Only
